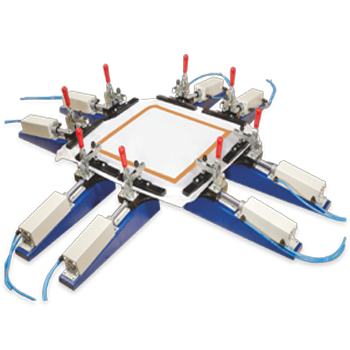

Pneumatic Stretching Clamp

Model : CMS 10

• Specially designed modular pneumatic stretching clamps in table top execution for all mesh type.
• Capable of achieving stretching values of up to 40 N.
• The simple and user – friendly control module in which the clamps are operated by means of a manual spool value.
• The frame profile height can be easily adjusted with the help of adjusting knob.

Technical Specification

• Model – CMS 10
• Air Pressure – 6 to 8 Bar
• Clamp – Width 250 mm
• Frame Profile – 25 – 40 mm
• Max. Mesh Tension  – 40n / cm
• Air Consumption – 2.7L / Stroke (0.09 cfm / stroke)

Features

• Specially designed modular pneumatic stretching clamps in table top execution for all mesh type.
• Capable of achieving stretching values of up to 40 N.
• The simple and user – friendly control module in which the clamps are operated by means of a manual spool value.
• The frame profile height can be easily adjusted with the help of adjusting knob.
