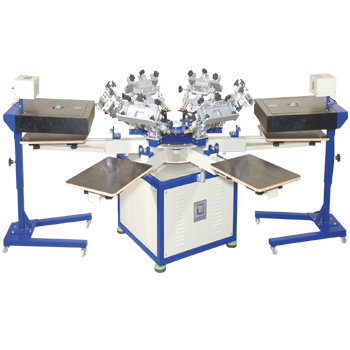

Micro Registration Printing Machine

• Micro Adjustment
• Easy to fix the frame
• “X & Y” Angle can be a adjusted in micron accuracy
• Pallet locking system available
• Registration maintain accuracy
• Suitable for garments / cloth, bags, non oven bags, jute bags and cotton bags
• Fire / water proof wooden pallet (option aluminium)
• Infrared flash curer

Technical Specification

Model	No of Color	Max Printing Area	Max Frame Size	Machine Diameter	Machine Height
CP04	4	400 X 600mm (20″ X 30″)	24″ X 34″	11.5′ ( Φ8′ optional)	4′
CP0604	6	400 X 600mm (20″ X 30″)	24″ X 34″	12.5′	4′
CP0806	8	400 X 600mm (20″ X 30″)	24″ X 34″	13.5′	4′
CP100	10	400 X 600mm (20″ X 30″)	24″ X 34″	14.5′	4′

Features

• Micro Adjustment
• Easy to fix the frame
• “X & Y” Angle can be a adjusted in micron accuracy
• Pallet locking system available
• Registration maintain accuracy
• Suitable for garments / cloth, bags, non oven bags, jute bags and cotton bags
• Fire / water pro0f wooden pallet (option aluminium)
• Infrared flash curer
