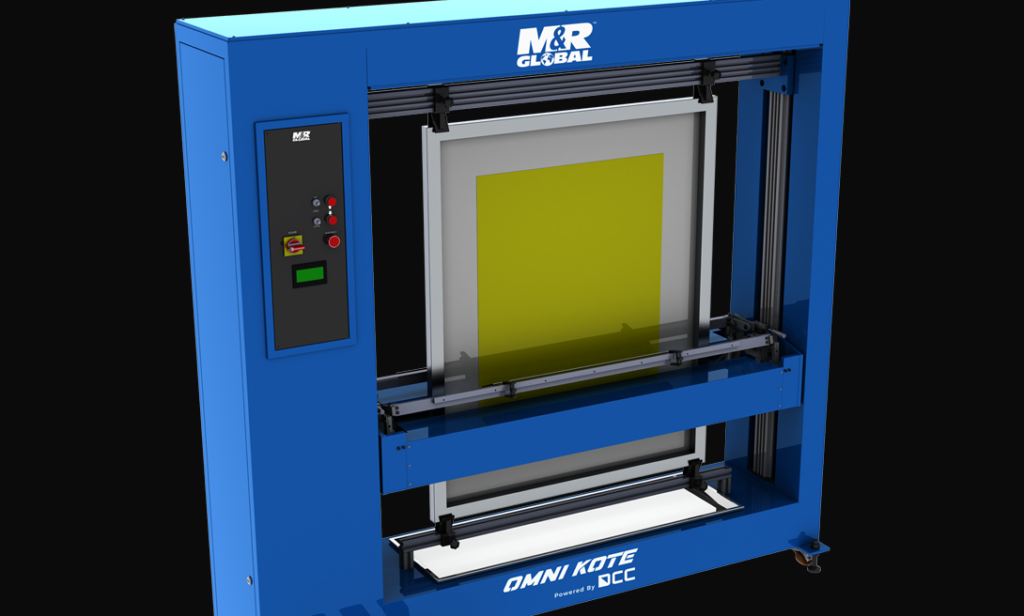

Motorised Screen Frame Holder
Foot Pedal Operated
Individual Controls For Coating On Both Sides
Adjustable Coating Troughs Pressure
AC Motor Drive
Adjustable Coating Stroke Length
Touch Screen Control Panel
Programmable Flow Time Of Emulsion
| Screen Frame Size | Min. 12"" x 12"" OD (31 cm x 31 cm) / Max. 46"" x 56"" OD (117 cm x 142 cm) |
| Screen Frame Profile | Min. 1.0"" (2.5 cm) /Max. 2.0"" (5 cm) (Width) Min. 1.0"" (2.5 cm)/Max. 1.5"" (4 cm) (Thickness) |
| Air Consumption | 4 - 6 Kg / cm² (10 Lit / Min) |
| Coating Speed | 1 - 15 Mt. / Min. |
| Emulsion Flow Time | 0 - 99 sec |
| Electric Specifications* | 208-230 V AC, 16 Amps, 1 Ph, 50/60 Hz |
| Power Consumption | 1.5 HP (1.13 kW) |
| Dimensions (LxWxH) | 7.6' (L) x 2.1' (W) x 7.2' (H)/ 91"" (L) x 25"" (W) x 86"" (H)/ 232 (L) x 64 (W) x 220 (H) cm |
| Weight | 440 kg |
